REA VeriCube

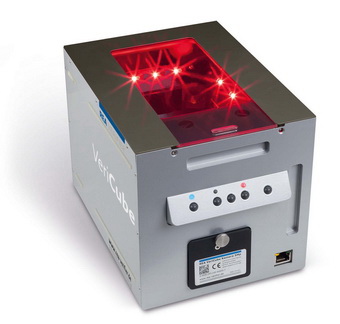

The REA VeriCube is a state-of-the-art matrix and barcode verifi cation device which can be used across all industry sectors. Whether lying, standing or from top to bottom, virtually any test sample can be measured contact-free in the optimum measuring position.

The measurement of optical codes in compliance with defi ned angles, distances and lighting allows accurate and reproducible measurement results and quality evaluations.

The measuring system is based on a high-precision optical module with a CMOS camera chip. The system is designed to avoid ambient light infl uences during the measurement process.

The measured values are transmitted via a standard network interface to a PC with REA TransWin32 evaluation
software installed.

The verification system consists of the measuring head,an optical module with a wide measuring range to choose from and the Windows based PC evaluation software REA TransWin32.

With the REA Verifi er VeriCube you can quickly fi nd out how to improve the read rate of the tested codes.Optimize the print quality of your codes by utilizing detailed measurement results.

Features
■ Contact-free measurements by a CMOS camera
■ Easy exchangeable camera modules to adapt to different code sizes
■ Selectable illumination (red or white light)
■ Capable of measuring DPM codes (direct part marking)
■ Designed to operate in 3 positions to meet different measuring requirements: sidewise, in upright position and upside down
■ Darkened measuring chamber to avoid ambient light infl uences
■ Verifi cation according to ISO/IEC 15415 for printed matrix codes
■ Verifi cation according to ISO/IEC TR 29158 (formerly AIM DPM guideline 2006) for direct part marking matrix codes
■ Verifi cation according to ISO/IEC 15416 or ANSI X3.182 for barcodes
■ Verifi cation in compliance with GS1 specifi cations
■ Verifi cation of GS1-128 data structures
■ Verifi cation of optional parameters for optimizing the print process
■ Multilingual user interface and reports
■ For ease of use, settings can be stored in customized profi les for fast selection
■ ISO/IEC 15418 / ANS MH10.8.2 data structure analysis
■ Specifi c code selection to meet the pharmaceutical industry demands
■ Power supply via network cable (Power over Ethernet)
■ Easy removable and exchangeable transparent cover plate
■ Network-compatible PC evaluation software Trans-Win32 for Windows (multi user capable)

Code Types
Matrix Codes (2D):
DataMatrix, DPM-Matrix Codes, QR-Code, MicroQRCode,Aztec Code, PDF 417, more under development

Barcodes (1D):
EAN-13, UPC-A, UPC-E with/ without ADD-ON, EAN-8,2/5 Interleaved, ITF-14, Frachtpost, Code 39, PZNCode,Code 32, Code 128, GS1-Databar, GS1-Data-bar Composite

Optional Codes:
2/5 3 Bars, 2/5 5 Bars, 2/5 IATA, 2/5 Baggage,2/5 DHL Express (Frachtpost-Code), Code39 Full ASCII,Code93, MSI, Plessey, Codabar Monarch (18), LAETUS Pharmacode, LAETUS Mini Pharma Code

Technical Data

■ Measuring accuracy compliant toISO/IEC 15426-2 and ISO/IEC 15426-1
■ Windows Software TransWin32 included
■ Red LED light 660nm or white LED light 4.000 °K
■ Illumination angle 45°, red or white light
■ Status LEDs for scan and light source selection
■ Power supply via PoE (Power over Ethernet)
■ Key panel with on/off, Scan and 3 customizable - function keys
■ Flip key panel to accomodate to preferred measuring position
■ RJ45 Ethernet port for TCP/IP communication and PoE Power supply
■ Exchangeable camera module, resolution 2592 x 1944 pixel
■ Camera focus and aperture pre-adjusted by factory
■ Size: 200 x 150 x 150 mm (w/l/h), with key panel 210 mm width
■ Weight: 2.600 g
■ Windows 7, Windows 8, 32 and 64bit supported
